Special Introductory Rate:
NF64 Comes Complementary with your Photon Purchase

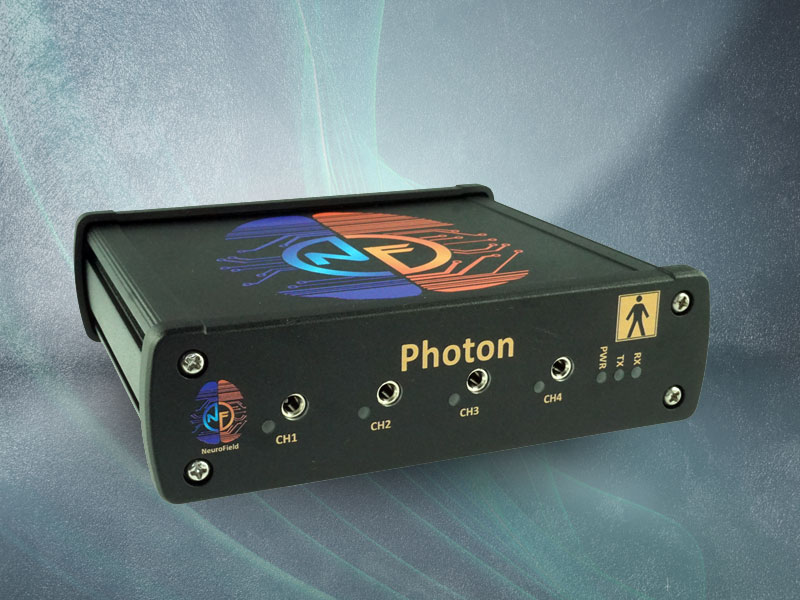

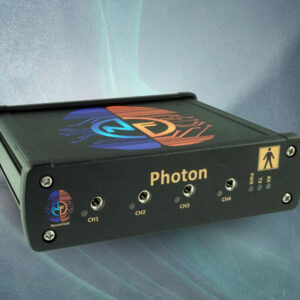

A four-channel near-infrared LED light system engineered to work seamlessly with NeuroField64. The Photon drives up to four high-output LEDs at 1070 nm and 810 nm, giving you the flexibility to deliver near-infrared light exactly where and how you choose.
Near-infrared LED light has become one of the most popular tools in the wellness space. The Photon is a low-risk general wellness product designed to support relaxation, stress management, and overall well-being as part of a healthy lifestyle, and it brings that capability into the NeuroField ecosystem, with the multi-channel flexibility and precise control you expect from NeuroField equipment.
Original price was: $5,998.00.$4,999.00Current price is: $4,999.00.
| Specification | Details |
|---|---|
| Channels | 4 independently controlled LED channels |
| Wavelengths | 1070 nm and 810 nm (near-infrared) |
| LED Configurations | 4 × 1070 nm • 4 × 810 nm • 2 × 1070 nm + 2 × 810 nm (simultaneous dual-wavelength) |
| LED Modules | Four 1070/810 nm dual-wavelength modules included • Optional modules: 810/660, 850/810, 940/660, 810/697 nm |
| Power Density | 300 mW/cm² per individual wavelength • 500 mW/cm² in combined dual-wavelength mode |
| Modes | Pulsed output, 0.1 Hz – 300,000 Hz |
| Waveforms | Square, sawtooth, and sine |
| Level Control | Independent per-channel amplitude control, 14-bit resolution |

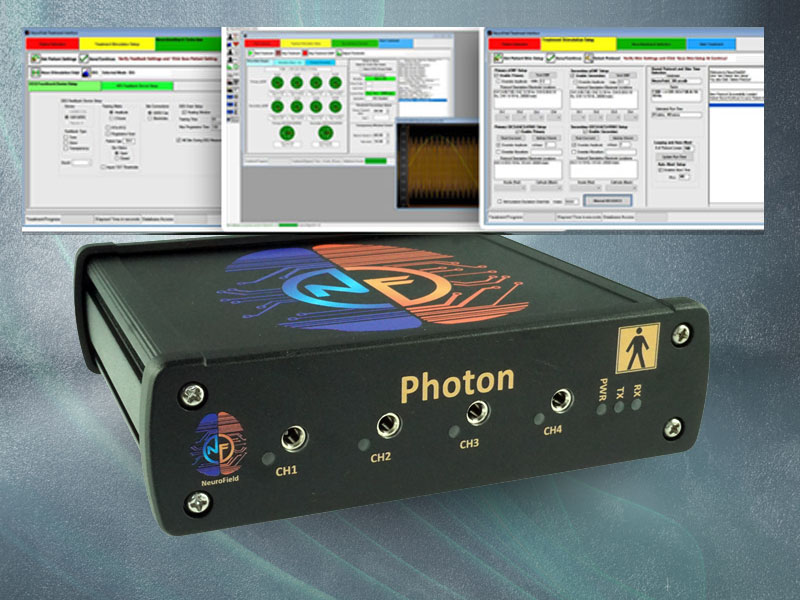

| Platform | Integrates with NeuroField64 (Windows) |

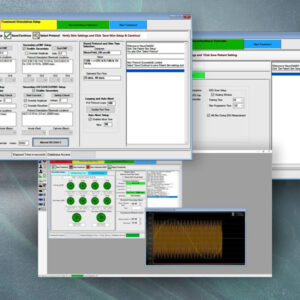

| Control | Amplitude, frequency, and waveform managed through NeuroField64 |
| Connectivity | USB communication adapter (included) links the Photon to your PC |

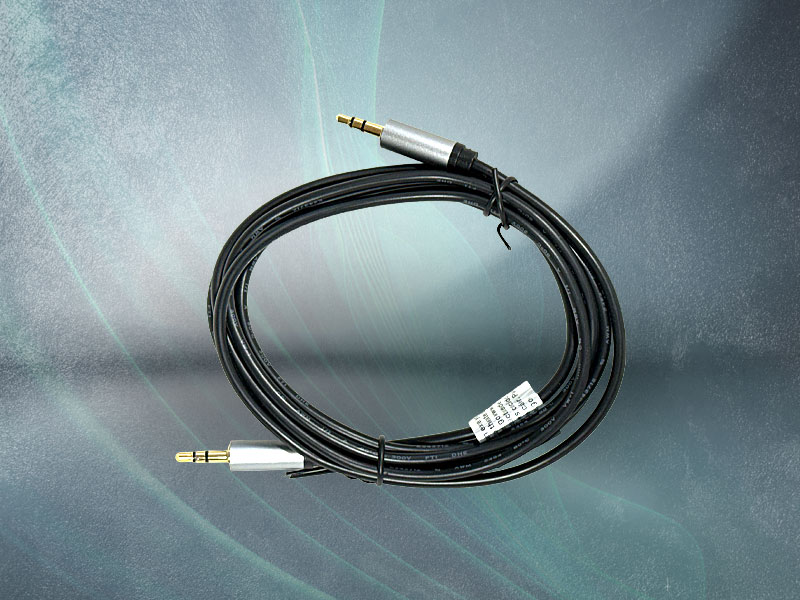

| Output Connectors | 4 front-panel 3.5 mm jacks for LED modules |
| Enclosure | Extruded aluminum, spill-resistant (ingress-protected) design |
| Safety | Designed to UL isolation and electrical safety standards; optically isolated from host PC |

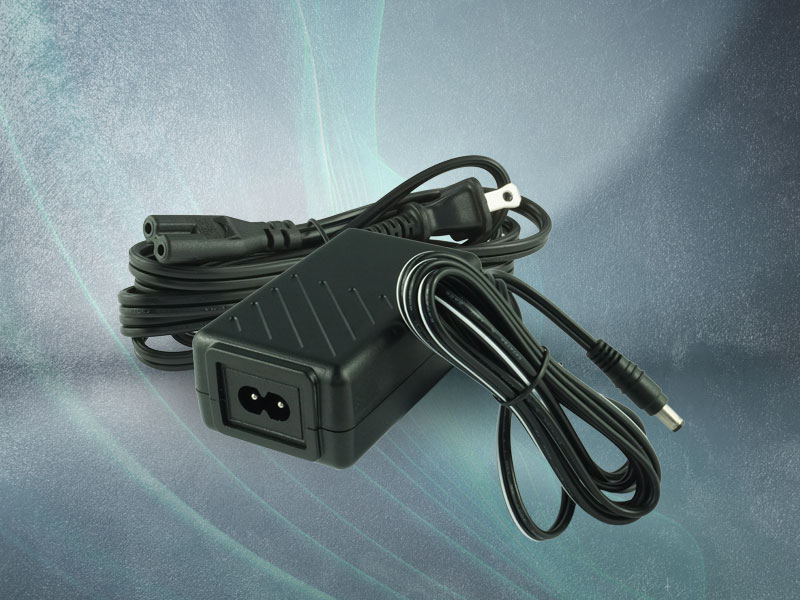

| Power Supply | Medical-grade desktop supply, 12 V / 1.67 A (20 W), included |
The Photon research kit includes everything you need to add near-infrared light delivery to your NeuroField64 setup.
Package Contents:
Expand Your Wavelength Options

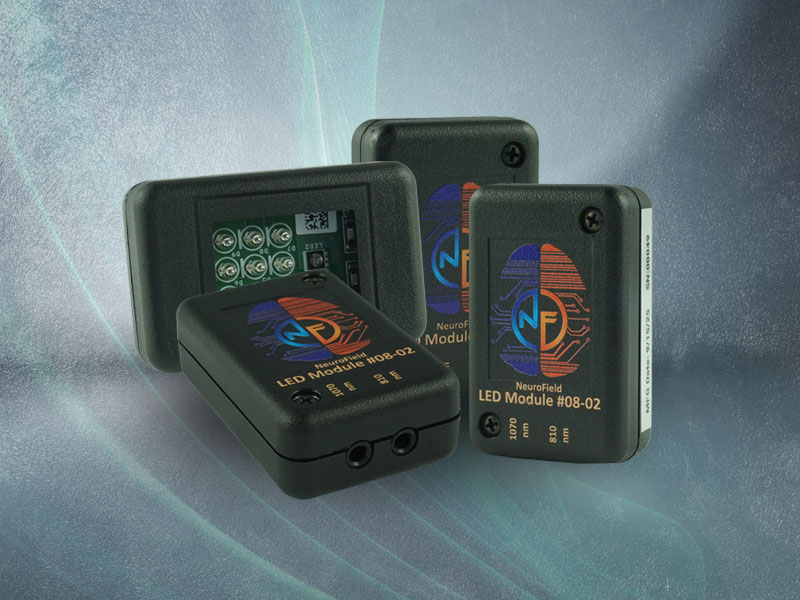

The Photon ships ready to use with four 1070/810 nm LED modules. Additional dual-wavelength LED modules are available separately, letting you extend your system into the red and near-infrared range:
System Requirements for Optimal Results:
How It Works
The Photon is designed for low-risk general wellness use. As with any bright LED light source: Do not look directly into the LEDs or point them at the eyes; use the Photon only as described in the user guide, with the supplied power supply and accessories; and discontinue use if you experience skin or other discomfort.
